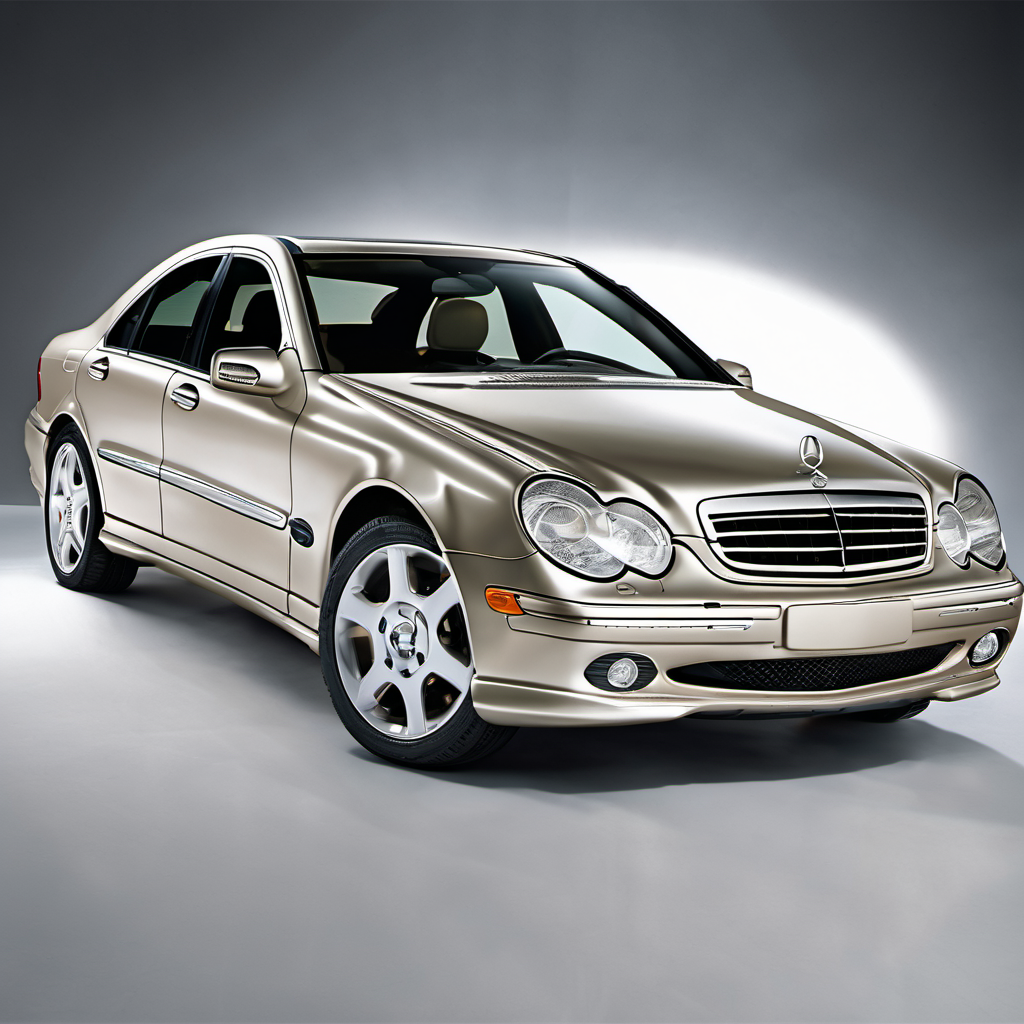

2006 Mercedes-Benz C-Class C230

Specifications

What's under the hood.

Horsepower

201 hp

Cylinders

6-cyl

Displacement

2.5L

Fuel

Gasoline

Drive

RWD

Body class

Sedan

Doors

4

• 08V303000

  ELECTRICAL SYSTEM

  MERCEDES-BENZ IS RECALLING MY 2006-2008 M-CLASS, R-CLASS, MY 2005-2009 SLK-CLASS, MY 2005-2008 C-CLASS, MY 2003-2004 AND 2006-2008 CLK-CLASS, MY 2003-2008 E-CLASS, MY 2004 AND 2008 CL-CLASS, MY 2008 CLS-CLASS, MY 2004 AND 2007-2008 S-CLASS, MY 2003 G-CLASS, AND MY 2003-2004, 2006 AND 2009 SL-CLASS VEHICLES. A SOFTWARE CALIBRATION NUMBER (SCN) CODING RECEIVED ON THE AFFECTED VEHICLES DURING A RECENT WORKSHOP VISIT WAS INCORRECT. DEPENDING ON THE MODEL YEAR AND MODEL AFFECTED, THE RESULTS OF AN INCORRECT SCN CODING CAN AFFECT A NUMBER OF VEHICLE SAFETY AND EMISSION FUNCTIONS INCLUDING THE FOLLOWING TYPES OF FUNCTIONS: (1) THE FUEL GAUGE READINGS MAY BE INCORRECT; (2) A STUCK FUEL-LEVEL SENSOR MAY NOT BE DISPLAYED IN THE INSTRUMENT CLUSTER; (3) THE OBD SYSTEM MAY CAUSE THE CHECK ENGINE LIGHT TO ILLUMINATE INCORRECTLY; AND, (4) THE SPEEDOMETER MAY BE OUT OF TOLERANCE.

  Consequence: IN THE EVENT OF A VEHICLE CRASH, THE ELECTRICAL FUEL PUMP MAY NOT RECEIVE A CRASH SIGNAL THAT IS REQUIRED FOR THE FUEL PUMP TO DISCONNECT AND PREVENT FUTURE FUEL DELIVERY AS DESIGNED.

  Remedy: DEALERS WILL RECODE THE SCN FREE OF CHARGE. THE RECALL BEGAN ON AUGUST 30, 2008. OWNERS MAY CONTACT MERCEDES-BENZ AT 1-800-367-6372.

  2008-07-07

• 05V560000

  AIR BAGS

  CERTAIN PASSENGER VEHICLES EQUIPPED WITH SPORT MODEL STEERING WHEELS FAIL TO COMPLY WITH THE REQUIREMENTS OF FEDERAL MOTOR VEHICLE SAFETY STANDARD NO. 208, "OCCUPANT CRASH PROTECTION." IN CERTAIN LOW RISK AIR BAG DEPLOYMENT TESTS CONDUCTED BY NHTSA, USING AN OUT-OF-POSITION UNBELTED 5TH PERCENTILE FEMALE CRASH TEST DUMMY, IRREGULARITIES WERE DEMONSTRATED INDICATING THAT OCCUPANTS MAY NOT BE PROPERLY PROTECTED IN A CRASH.

  Consequence: IN THE EVENT OF A CRASH, AN OCCUPANT MAY NOT BE PROPERLY RESTRAINED WHICH COULD RESULT IN INJURIES.

  Remedy: DEALERS WILL INSTALL A NEW AIR BAG INFLATOR MODULE FREE OF CHARGE. THE RECALL BEGAN ON MARCH 15, 2006. OWNERS MAY CONTACT MERCEDES-BENZ AT 1-800-367-6372.

  2005-12-20

• 05V133000

  SERVICE BRAKES, HYDRAULIC

  ON CERTAIN VEHICLES, THE SENSOTRONIC BRAKE CONTROL (SBC) SYSTEM MAY PREMATURELY SHIFT TO THE HYDRAULIC BACK-UP FUNCTION MODE, DUE TO DETERIORATION OF THE WIRING HARNESS CONNECTION, OR DUE TO PREMATURE FAILURE OF THE HYDRAULIC PUMP.

  Consequence: IN THE HYDRAULIC BACK-UP MODE, THE DRIVER HAS BRAKING POWER SUFFICIENT TO STOP THE VEHICLE, ALTHOUGH GREATER BRAKE PEDAL PRESSURE IS REQUIRED AND THE BRAKE PEDAL TRAVEL WILL BE NOTICEABLY LONGER.

  Remedy: DEALERS WILL INSTALL A BRACKET AND REPLACEMENT GROUND WIRE TO THE SBC PUMP UNIT ON ALL VEHICLES FREE OF CHARGE. ADDITIONALLY DEALERS WILL INSPECT AND REPLACE THE SBC PUMP UNIT IN SL VEHICLES PRODUCED DURING A LIMITED PRODUCTION PERIOD. THE RECALL BEGAN ON AUGUST 8, 2005. OWNERS MAY CONTACT MERCEDES-BENZ AT 1-800-367-6372.

  2005-04-01

Built with CarVector

One call. The same data you just read.

The page above isn't marketing — it's the API response, rendered. Here's the exact JSON your code receives for this vehicle.

{
  "id": "bw42k4xkr3fstv0",
  "year": 2006,
  "make": "Mercedes-Benz",
  "model": "C-Class",
  "trim": "C230",
  "submodel": "Sedan",
  "horsepower": 201,
  "cylinders": 6,
  "displacement_l": 2.5,
  "transmission": null,
  "drive_type": "RWD",
  "fuel_type": "Gasoline",
  "body_class": "Sedan",
  "image_url": "https://vehicle.s3.us-east-005.backblazeb2.com/vehicles/2006/Mercedes-Benz/C-Class/2006_Mercedes-Benz_C-Class_f4f15e5f_00001_.png",
  "image_type": "illustration",
  "recall_count": 3
}

Compare

Related vehicles in the catalog.

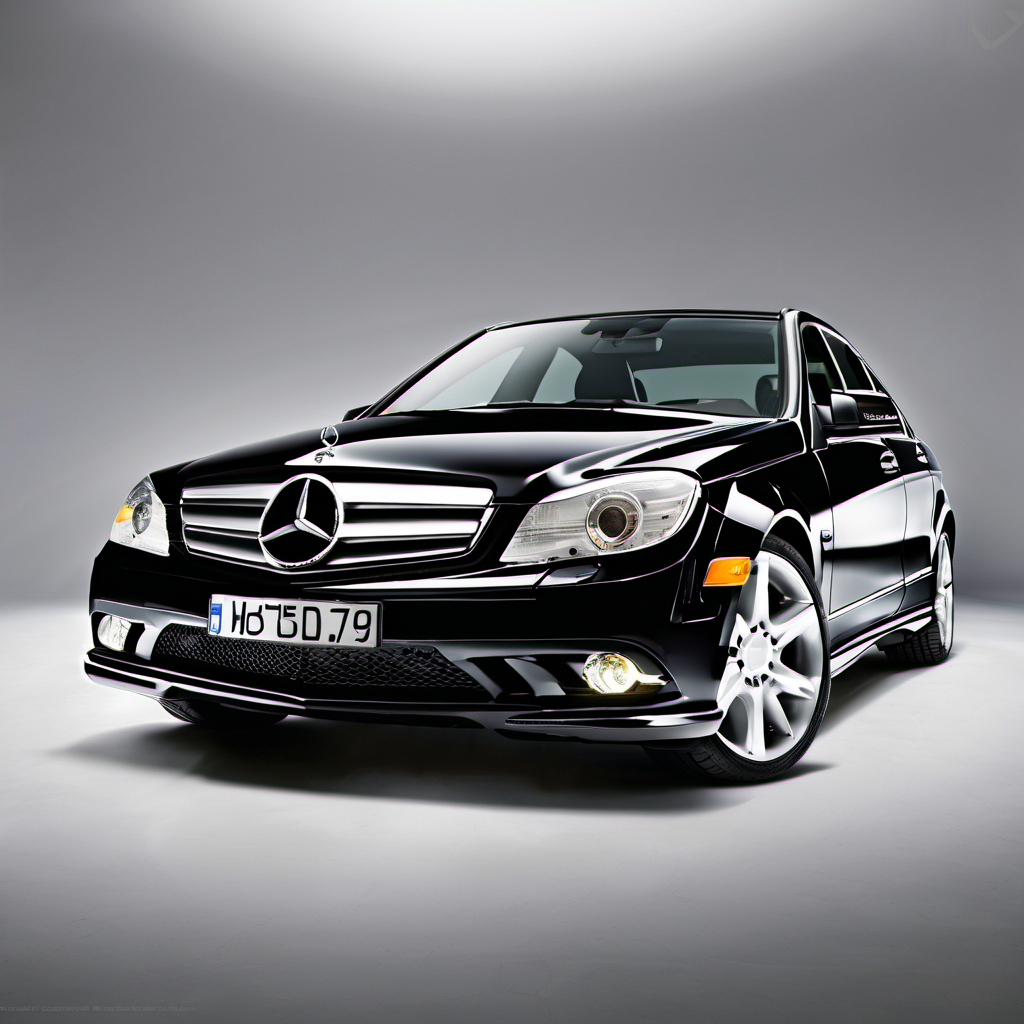

2009

Mercedes-Benz C-Class

C350

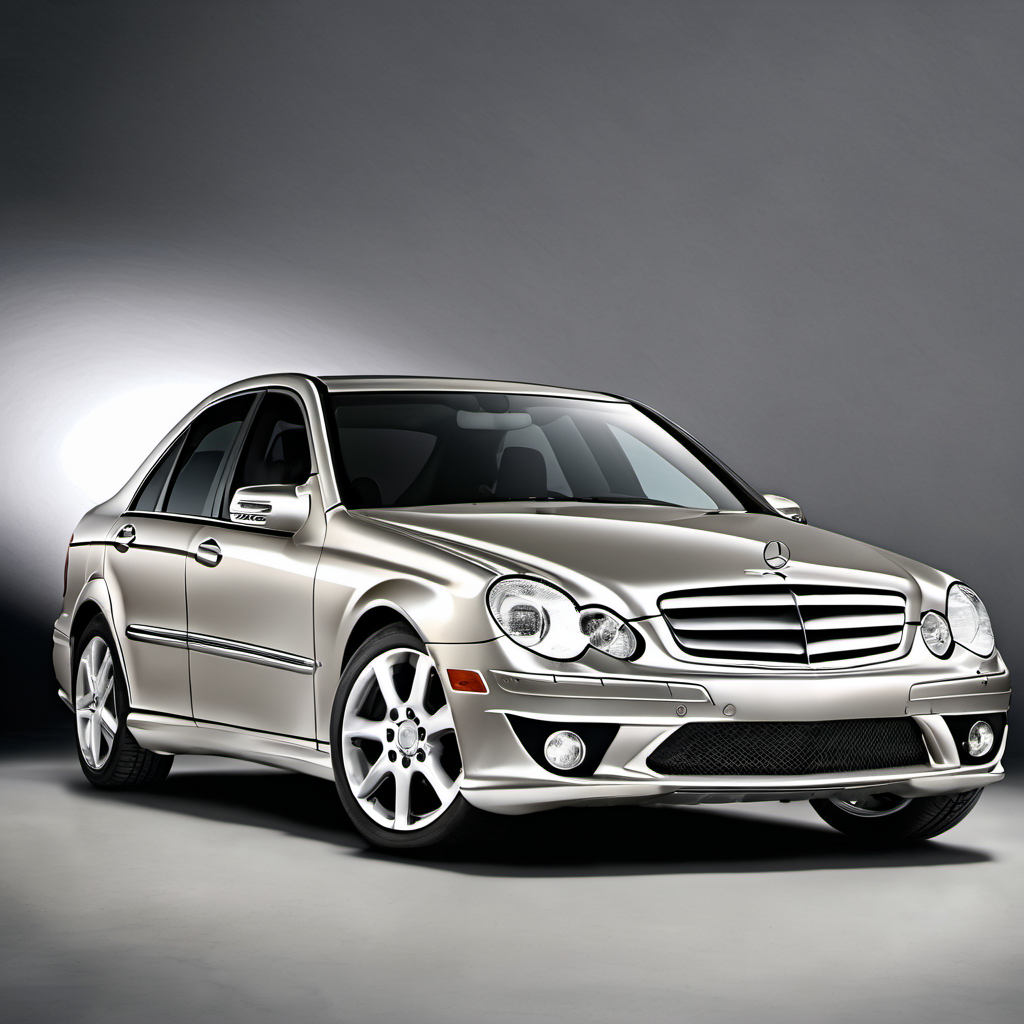

2008

Mercedes-Benz C-Class

C300

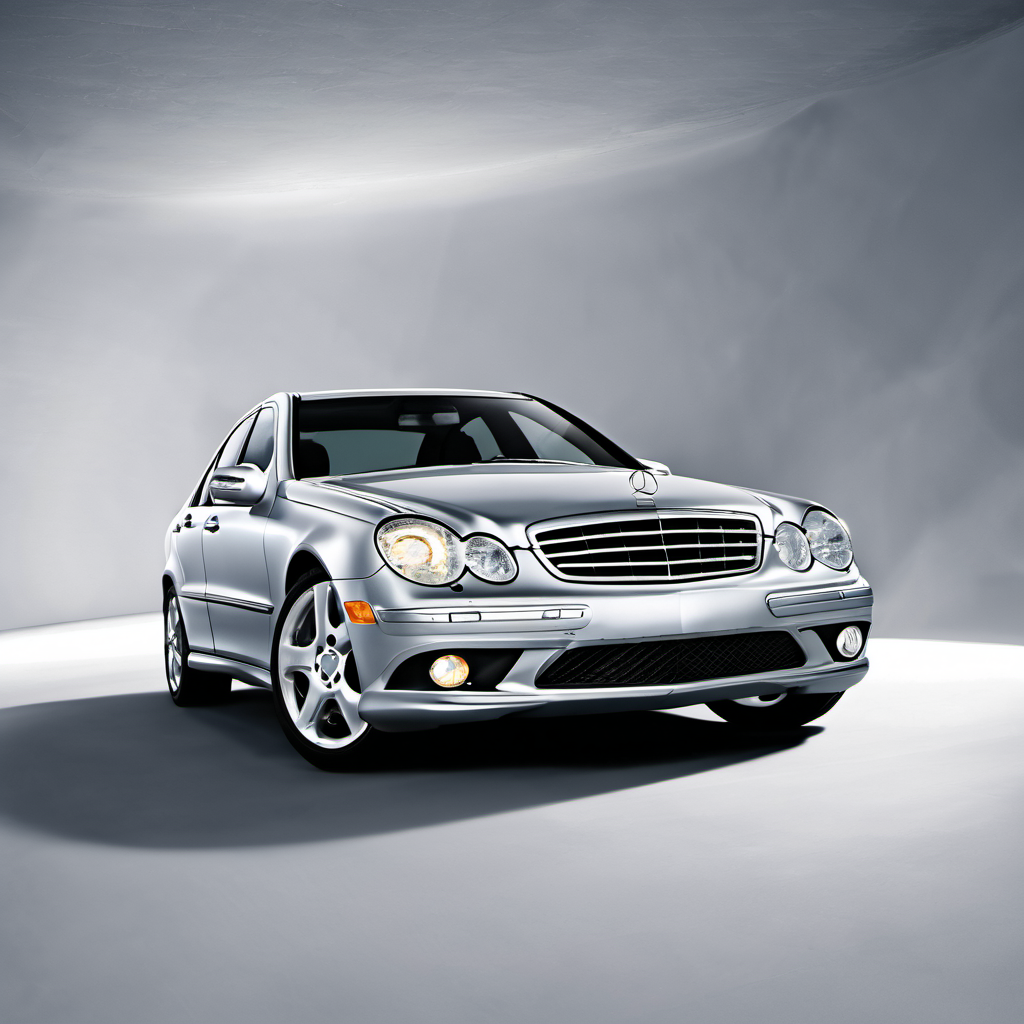

2007

Mercedes-Benz C-Class

C280

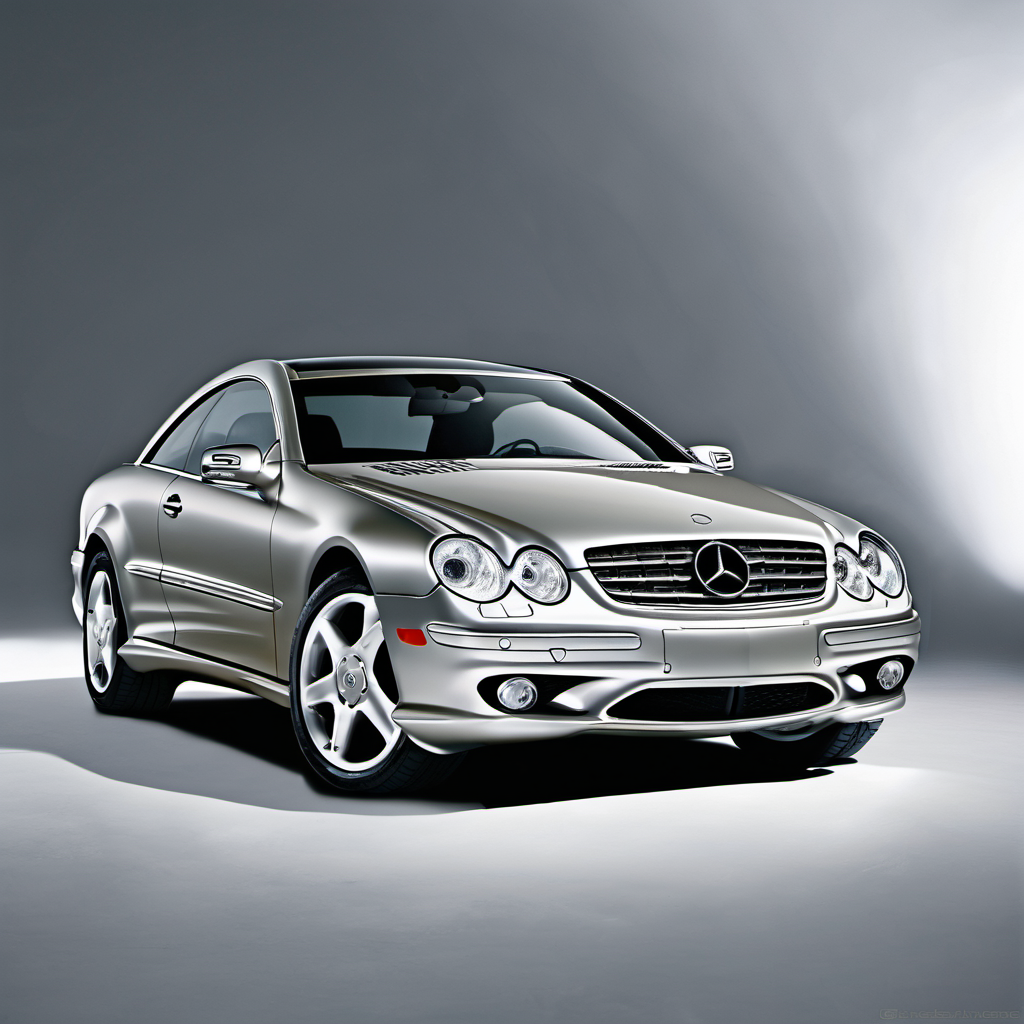

2006

Mercedes-Benz CL-Class

CL500

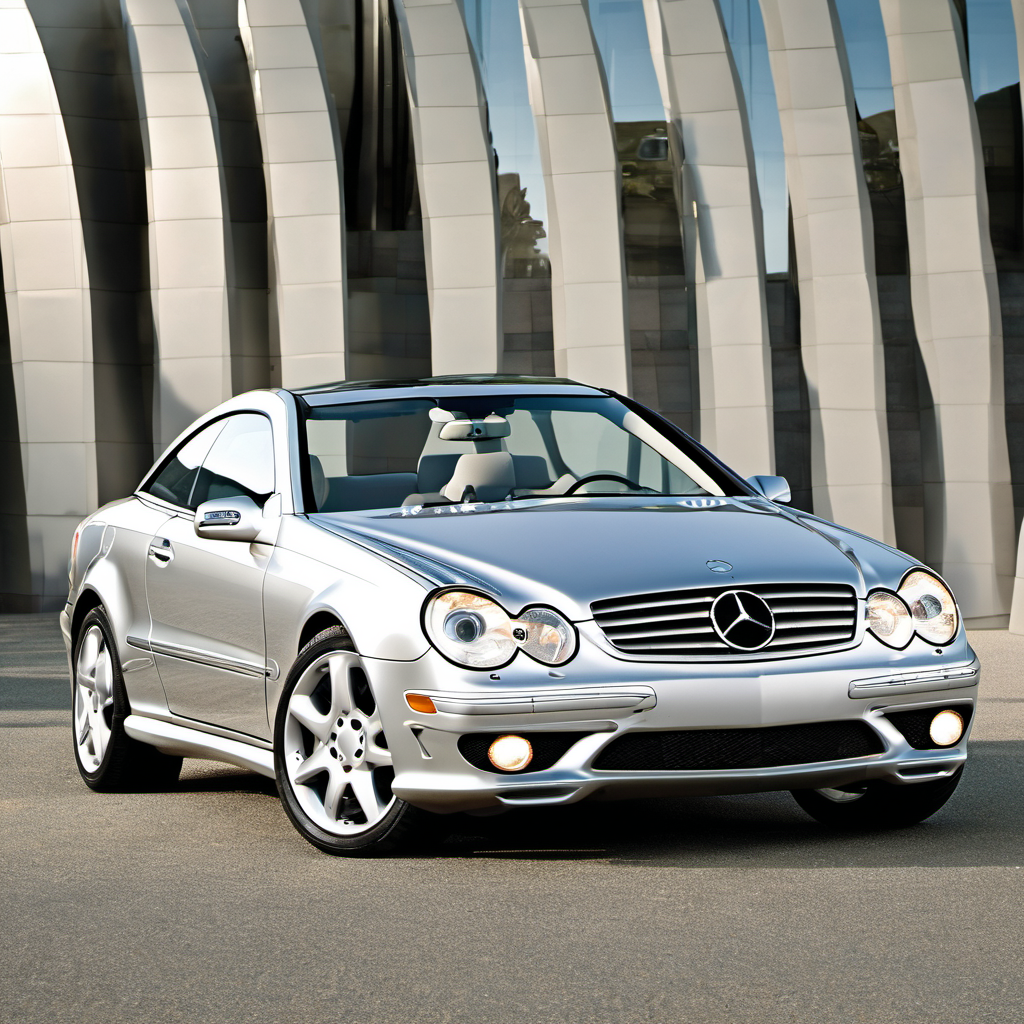

2006

Mercedes-Benz CLK-Class

CLK350

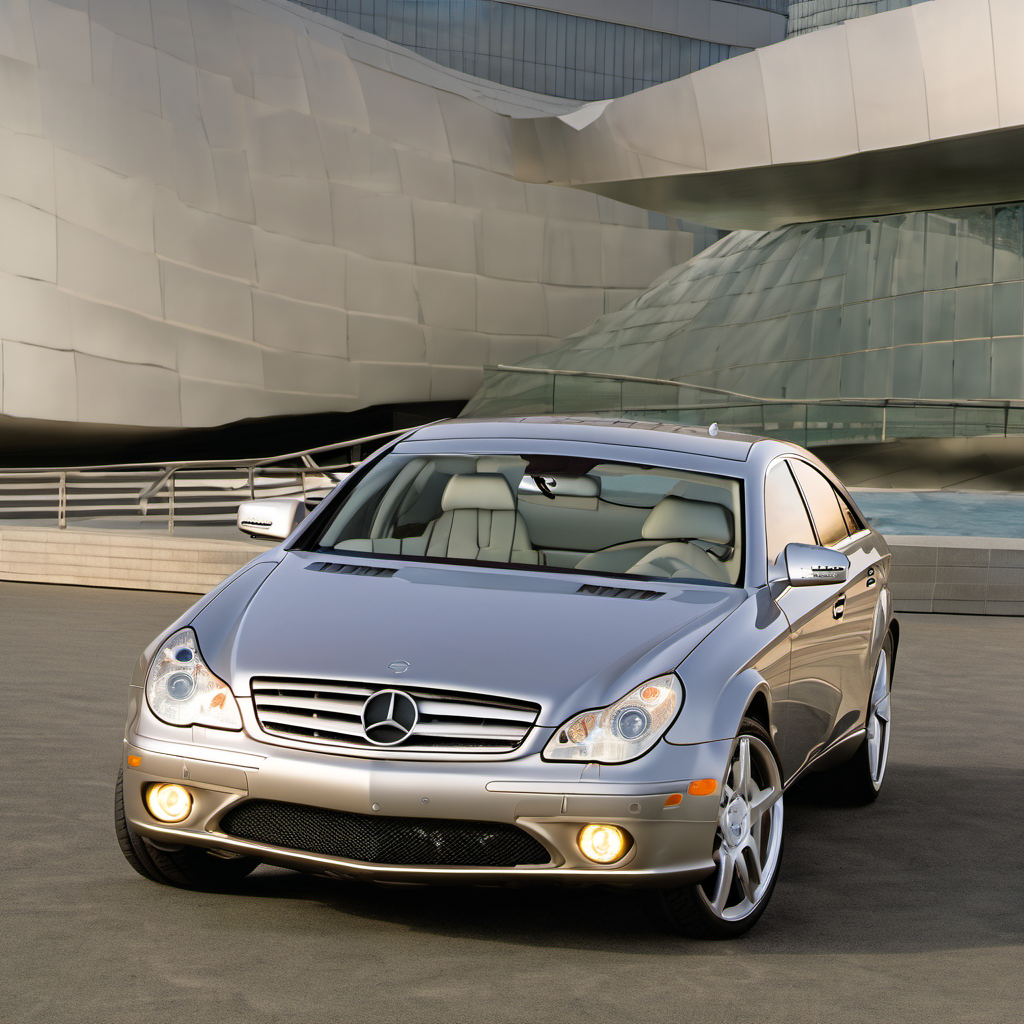

2006
