1985 Chevrolet Caprice Caprice Wagon

Specifications

What's under the hood.

Horsepower

165 hp

Cylinders

8-cyl

Displacement

5L

Fuel

Gasoline

Transmission

Automatic 4-spd

Drive

RWD

Body class

Midsize-Large Station Wagons

Doors

4

• 07E088000

  EQUIPMENT

  CERTAIN HONEYWELL FRAM RACING BRAND HP4 AND HP8 OIL FILTERS THAT WERE MANUFACTURED FROM MAY 25, 2006, THROUGH SEPTEMBER 14, 2007, AND SOLD FOR USE AS REPLACEMENT EQUIPMENT FOR VEHICLES LIST ABOVE. THE AFFECTED FILTERS ARE MARKED WITH A DATE CODE A61451 THROUGH A72571 SEQUENTIALLY. THE DATE CODE AND PART NUMBER APPEAR ON THE FILTER HOUSING. FRAM RACING HP4 AND HP8 OIL FILTERS NOT BEARING A DATE CODE IN THIS RANGE ARE NOT AFFECTED BY THIS RECALL. THE GASKET OF THE OIL FILTER BECOMES MORE PLIABLE UNDER HIGH TEMPERATURES AND PRESSURES.

  Consequence: THIS CONDITION MAY CAUSE INADEQUATE SEALING AND LOSS OF ENGINE OIL, POSSIBLY RESULTING IN A FIRE.

  Remedy: HONEYWELL WILL REPLACE THE AFFECTED OIL FILTERS FREE OF CHARGE. THE RECALL BEGAN DURING NOVEMBER 2007. OWNERS CAN CONTACT FRAM CUSTOMER SERVICE TOLL-FREE AT 1-800-890-2075.

  24/10/2007

• 85V153000

  ELECTRICAL SYSTEM:12V/24V/48V BATTERY:CABLES

  THE POSITIVE BATTERY CABLE MAY CONTACT THE UPPER CONTROL ARM OR EXHAUST MANIFOLD SHIELD AND EVENTUALLY WEAR THROUGH THE INSULATION AND GROUND THE CABLE. CONSEQUENCE OF DEFECT: THIS COULD RESULT IN AN UNDERHOOD FIRE WHICH COULD CAUSE BURN INJURIES TO OCCUPANTS.

  Remedy: INSTALL A POSITIVE BATTERY SERVICE KIT.

  19/11/1985

• 85V151000

  FUEL SYSTEM, GASOLINE:DELIVERY:HOSES, LINES/PIPING, AND FITTINGS

  THE FUEL FEED AND FUEL RETURN PIPE ASSEMBLIES INCLUDES A HOSE WHICH MAY CONTACT THE POINTED END OF THE RADIATOR SHROUD ATTACHING SCREW. THIS COULD CAUSE A GASOLINE LEAK. CONSEQUENCE OF DEFECT: IF FUEL LEAK DEVELOPS IT COULD RESULT IN AN UNDERHOOD FIRE AND BURN INJURIES TO OCCUPANTS.

  Remedy: REPOSITION FUEL LINES TO PRECLUDE CONTACT WITH RADIATOR SHROUD ATTACHING SCREW.

  19/11/1985

• 06E043000

  FUEL SYSTEM, GASOLINE

  CERTAIN REPLACEMENT FUEL FILTERS, FRAM BRAND NAME P/N G3727, WITH DATE CODES X52911 THROUGH X60801 SEQUENTIALLY OR X600141 AND A MEXICO COUNTRY OR ORIGIN MARKING ON THE FUEL FILTER HOUSING MANUFACTURED FROM OCTOBER 18, 2005, THROUGH MARCH 21, 2006, SOLD FOR USE ON THE VEHICLES LISTED ABOVE AND ON CERTAIN SCHOOL BUSES. (TO SEE THE SCHOOL BUS ENGINE SIZES, CLICK ON "DOCUMENT SEARCH" AND THEN "BUS APPLICATIONS"). THE CONNECTOR ON THE FUEL FILTER WAS NOT MANUFACTURED TO HONEYWELL'S SPECIFICATION. AS A RESULT, THE O-RING MAY NOT SEAT CORRECTLY ON THE FUEL LINE.

  Consequence: THIS CONDITION MAY CAUSE AN INADEQUATE SEAL AT THE CONNECTION, POTENTIALLY LEADING TO A FUEL LEAK. IN THE PRESENCE OF AN IGNITION SOURCE, A FIRE COULD OCCUR.

  Remedy: HONEYWELL WILL NOTIFY OWNERS AND REPLACE THE FUEL FILTERS FREE OF CHARGE. THE RECALL BEGAN ON OCTOBER 18, 2006. OWNERS MAY CONTACT FRAM CUSTOMER SERVICE AT 1-800-890-2075 (OPTION 1).

  19/05/2006

• 89V102000

  VEHICLE SPEED CONTROL

  A SMALL NYLON BUSHING IN THE CRUISE CONTROL SERVO BAIL MAY SLIP OUT OF PLACE, CAUSING INTERMITTENT AND UNEXPECTED INCREASES IN ENGINE SPEED OR DIESELING (ENGINE RUN ON WITH IGNITION OFF).

  Consequence: SERVO ROD ASSEMBLY COULD CATCH ON ENGINE COMPONENTS ANDRESULT IN A STUCK THROTTLE WITH POTENTIAL FOR A VEHICLE CRASH.

  Remedy: INSTALL A NEW BUSHING IN CRUISE CONTROL SERVO BAIL.

  16/06/1989

Built with CarVector

One call. The same data you just read.

The page above isn't marketing — it's the API response, rendered. Here's the exact JSON your code receives for this vehicle.

{
  "id": "9wznsnvyijkb45l",
  "year": 1985,
  "make": "Chevrolet",
  "model": "Caprice",
  "trim": "Caprice Wagon",
  "submodel": "Classic",
  "horsepower": 165,
  "cylinders": 8,
  "displacement_l": 5,
  "transmission": "Automatic 4-spd",
  "drive_type": "RWD",
  "fuel_type": "Gasoline",
  "body_class": "Midsize-Large Station Wagons",
  "image_url": "https://vehicle.s3.us-east-005.backblazeb2.com/vehicles/1985/Chevrolet/Caprice/1985_Chevrolet_Caprice_Classic_4b14619a_00001_.png",
  "image_type": "illustration",
  "recall_count": 5
}

Compare

Related vehicles in the catalog.

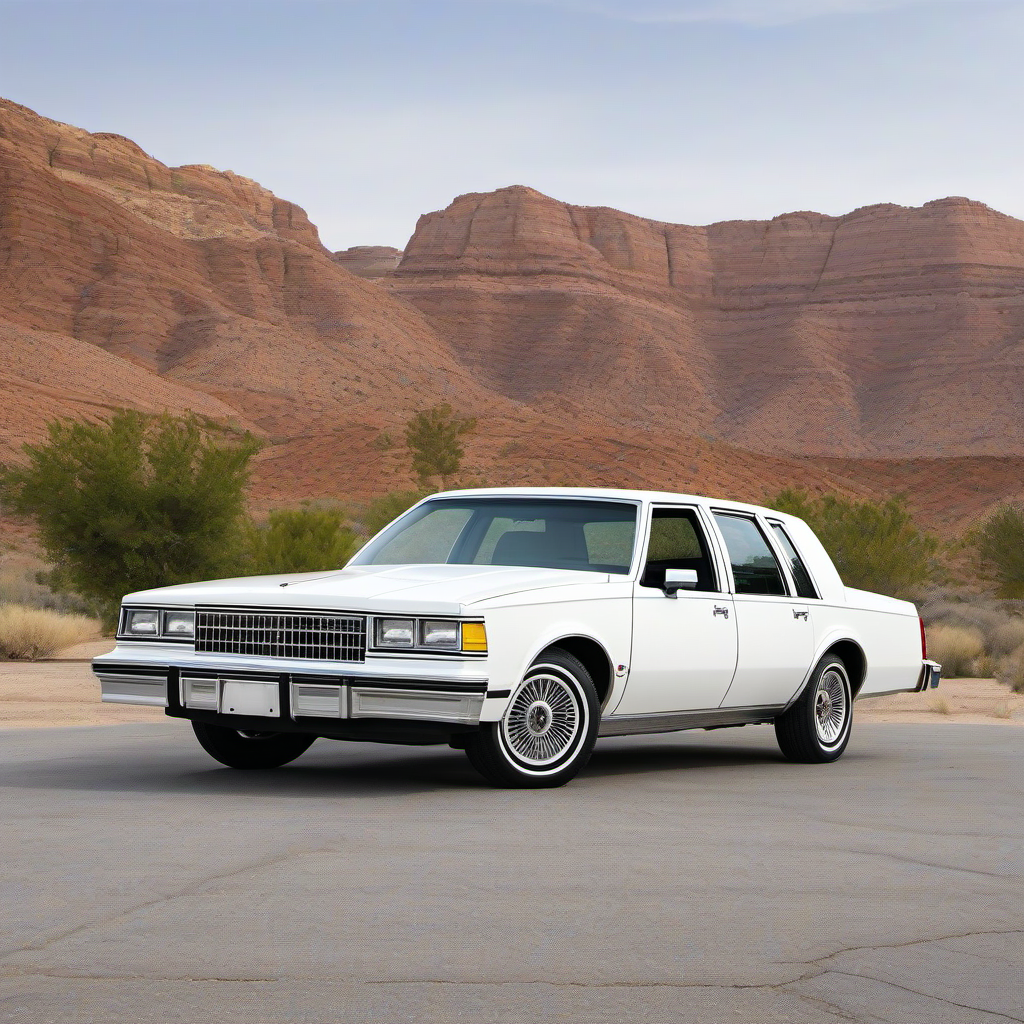

1988
